Study Context

Disease outbreaks in aquaculture cause billions of dollars in losses annually. Vaccination is the most sustainable prevention strategy, but the limited repertoire of effective fish vaccine adjuvants remains a bottleneck. Unlike mammals, fish rely heavily on innate immunity and IgM-mediated responses, meaning adjuvants must be tailored to the teleost immune system rather than borrowed from human vaccine platforms.

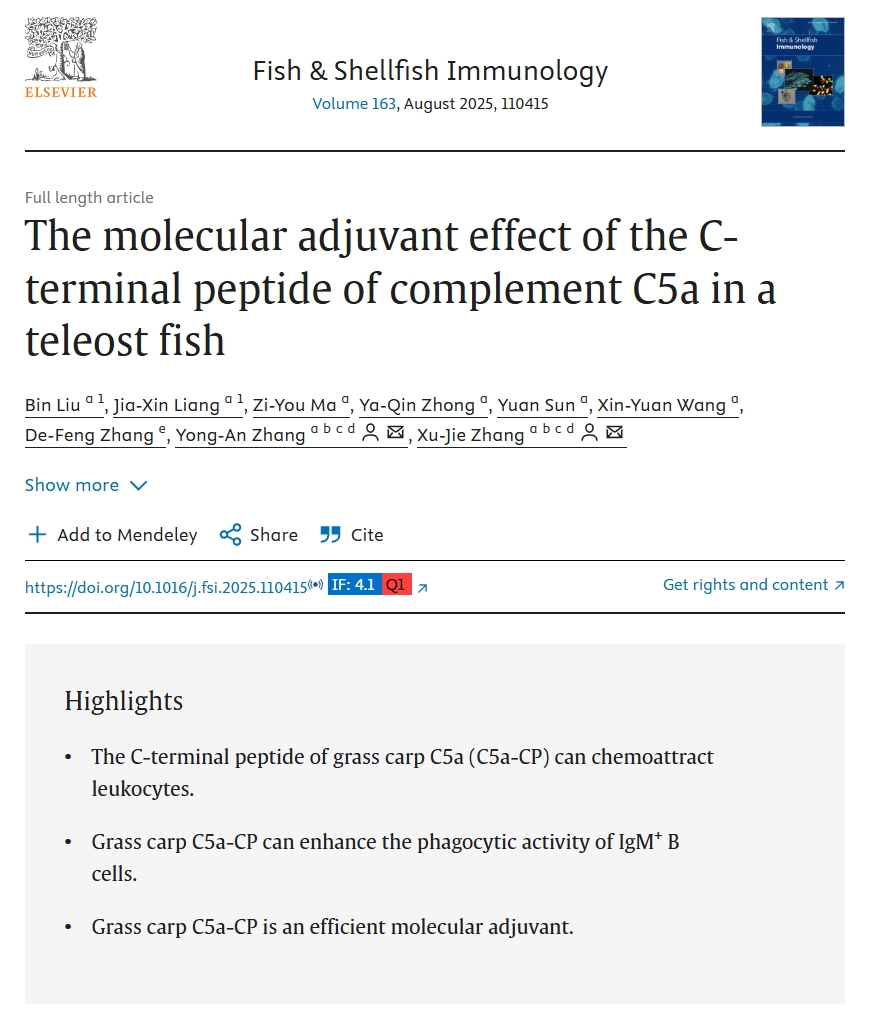

A 2025 study published in Fish and Shellfish Immunology (DOI: 10.1016/j.fsi.2025.110415) investigated whether the C-terminal peptide of grass carp complement C5a (C5a-CP) could serve as a species-specific adjuvant. The hypothesis: C5a-CP would activate C5aR on IgM⁺ B cells, enhancing their phagocytic activity and bridging innate complement signaling with adaptive antibody responses. Testing this required two custom reagents that don't exist commercially — recombinant grass carp IgM-CH and anti-grass carp C5aR antibodies.

Figure 1. Study overview: C5a-CP activates C5aR on grass carp IgM⁺ B cells, enhancing phagocytic activity and vaccine-induced immune protection. Challenge trials with A. hydrophila and GCRV-II demonstrated 96% relative percent survival (RPS) in the C5a-CP-adjuvanted group.

The Challenge

Two critical reagents stood between the team and their key experiments. First, quantifying IgM binding to C5a-CP required purified grass carp IgM-CH as an ELISA standard curve reference — no commercial source exists for this fish immunoglobulin. Second, proving that C5a-CP acts through the C5aR receptor on B cells required an anti-grass carp C5aR antibody for flow cytometry and immunofluorescence — again, not commercially available for this species.

Both reagents presented expression challenges: fish immunoglobulin heavy chains tend to misfold in E. coli, and developing an antibody against a fish complement receptor requires careful epitope selection to avoid cross-reactivity with other complement components.

AtaGenix's Approach

AtaGenix delivered an integrated protein + antibody solution tailored for non-model species:

• IgM-CH Protein Expression: GST-tagged grass carp IgM-CH (GenBank: DQ417927.1) was expressed in E. coli with IPTG induction. Inclusion bodies were solubilized and refolded via gradient urea dialysis. Affinity chromatography yielded >95% purity, with protein activity confirmed by ELISA. BCA quantification ensured accurate standard curve preparation (0.015625–0.25 μmol/L range).
• Anti-C5aR Polyclonal Antibody: AtaGenix designed the immunogen based on the C5aR N-terminal peptide sequence (DYGPFDFSNESYSC), targeting an extracellular domain unique to grass carp C5aR to minimize cross-reactivity. Rabbit-derived pAbs were produced and validated by immunofluorescence and flow cytometry, confirming specific labeling of C5aR⁺ cells in grass carp peripheral blood leukocytes. Delivered within 4–6 weeks.
• Functional Validation Support: AtaGenix supported ELISA-based IgM-CH activity testing and provided technical guidance for flow cytometry gating strategies to identify C5aR⁺/IgM⁺ double-positive B cells, as well as Ca²⁺ mobilization (Fluo4-AM) and phagocytosis assays (fluorescent bead uptake).

Figure 2. QC analysis of AtaGenix-produced recombinant grass carp IgM-CH protein. SDS-PAGE confirms high purity and expected molecular weight, suitable for use as an ELISA standard curve reference in IgM binding quantification assays.

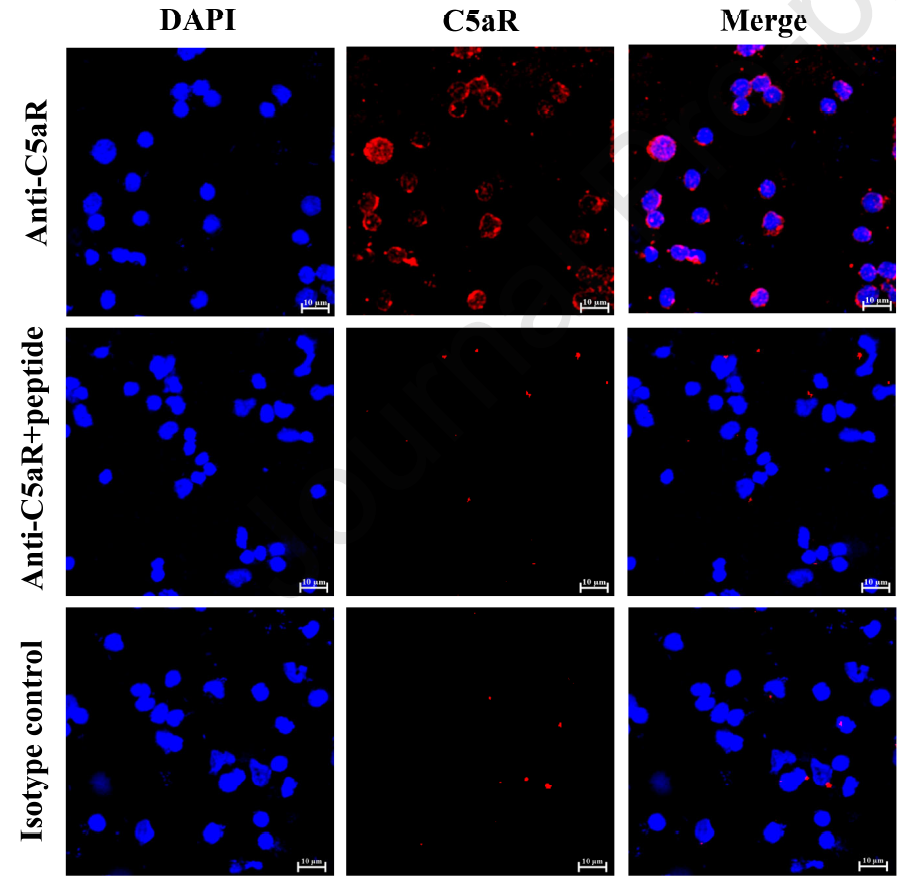

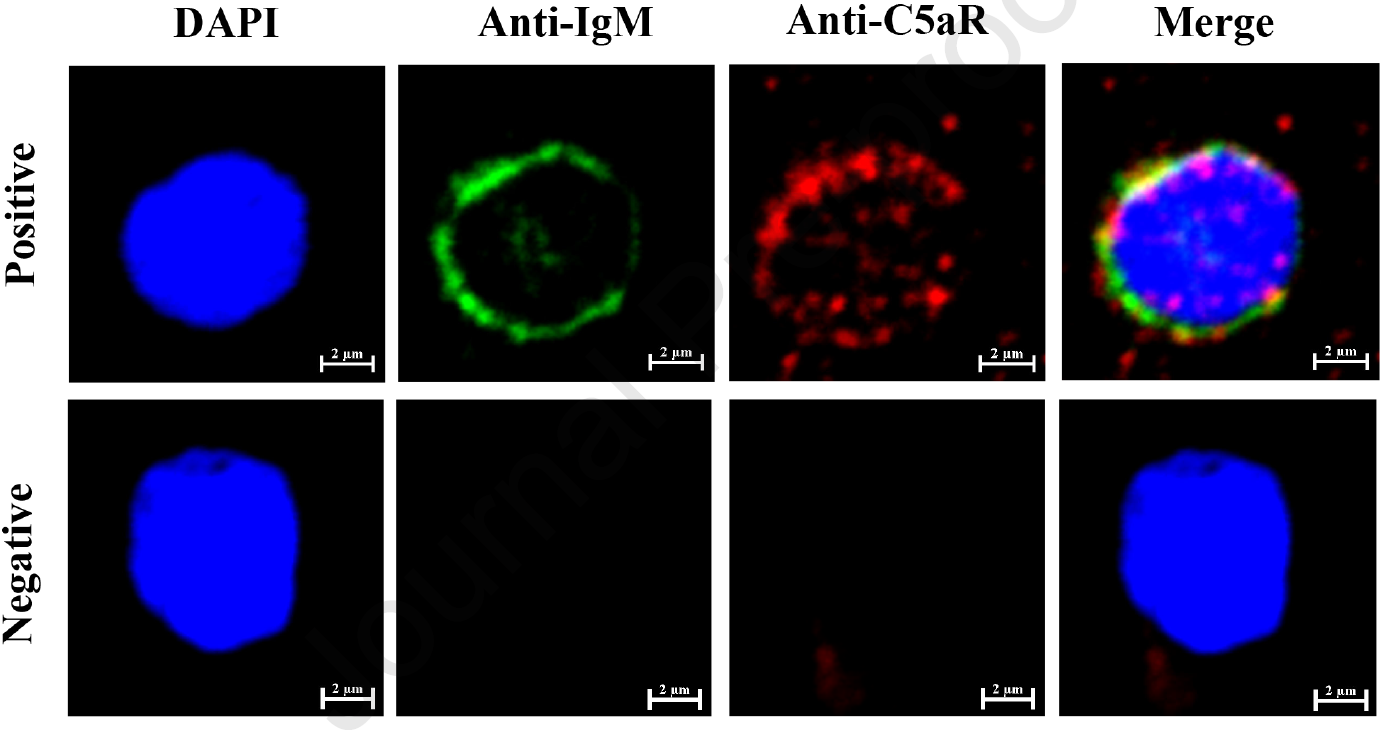

Figure 3. Validation of AtaGenix-produced anti-C5aR polyclonal antibodies. Immunofluorescence and flow cytometry confirmed specific labeling of C5aR⁺ cells in grass carp peripheral blood leukocytes, enabling identification of C5aR⁺/IgM⁺ double-positive B cell populations.

Results and Impact

Armed with AtaGenix's reagents, the research team demonstrated that C5a-CP binds C5aR on grass carp IgM⁺ B cells, triggers Ca²⁺ mobilization, and significantly enhances phagocytic activity. When formulated as a vaccine adjuvant, C5a-CP achieved a remarkable 96.03% relative percent survival (RPS) in challenge trials against Aeromonas hydrophila and grass carp reovirus (GCRV-II) — substantially outperforming unadjuvanted controls. These findings establish C5a-CP as one of the most effective species-specific fish vaccine adjuvants reported to date.

This case study is based on a published research collaboration. Results may vary depending on target protein, construct design, and project scope. All proprietary client information is subject to NDA.
